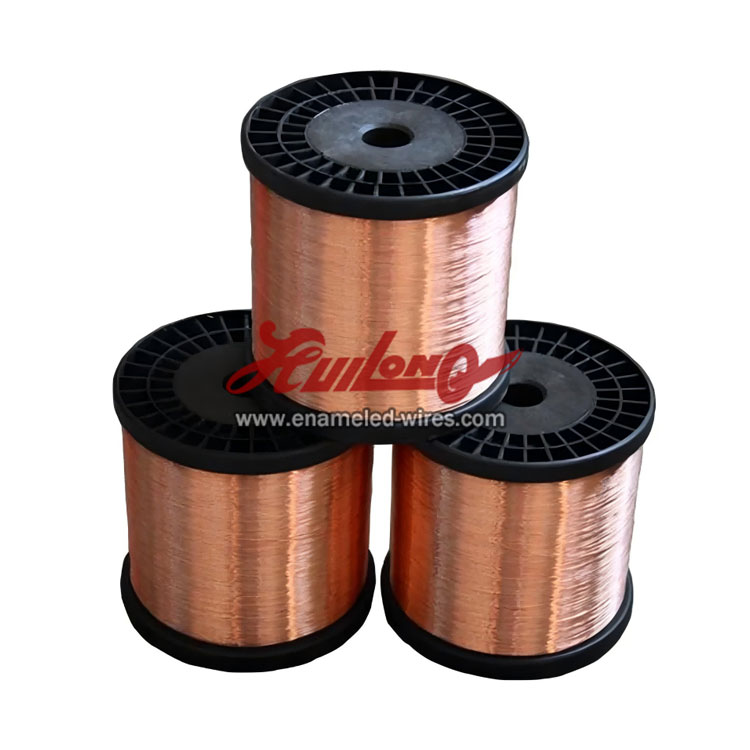

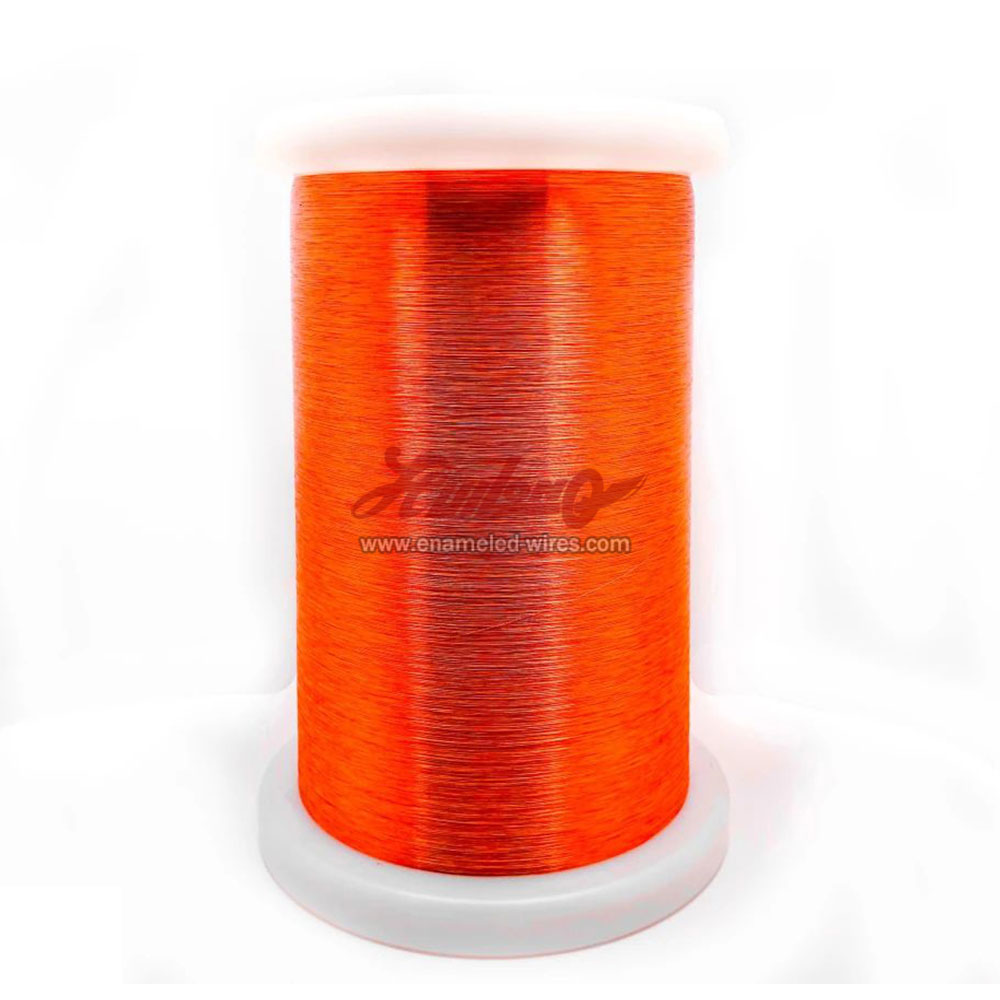

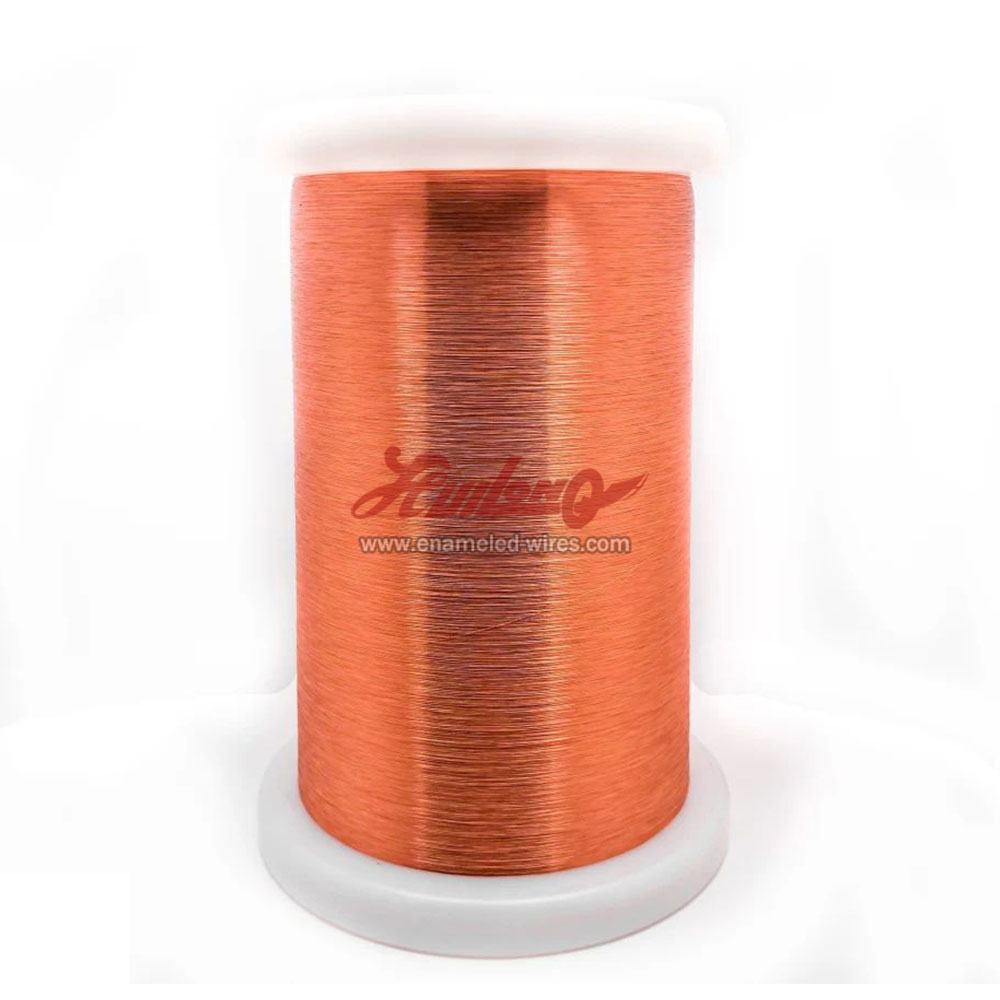

Enameled Copper Clad Aluminum Round Wire

Copper-clad aluminum enameled wire is used to make windings that require light weight, high relative conductivity and good heat dissipation, especially for transmission of high-frequency signals, special magnet wires for speaker coils and optical drives.

Enameled  copper clad aluminum wire is a new kind of magnet wire,which combines the beneficial properties of the wonderful conductivity of copper and the light-weight of aluminum.

1) magnet wire Diameter: 0.025mm - 4.00mm.   We can also produce the wire according to customers' requirement.
2) magnet wire is mainly used as magnet wire in voils and coils taking the place of pure copper wire
3) magnet wire coating type:  Polyurethane(QA//UEW)
4) magnet wire coating color : natual color(copper color)
5) magnet wire manufacture standard: SJ/T 11223-2000, GB/T6109.1 ~ 11-1990
6) magnet wireTemperature Classification: 130oC 155oC 180oC


Magnet Wire Application

1.Special magnet wire applied in voice coils, CD-ROM coils;
2.Light magnet wire for mobiles and watches;
3.Magnet wire for high frequency transformers;
4.Magnet wire for deflexion coils of display;
5.Magnet wire for degaussing coils of display;
6.Other magnet wire

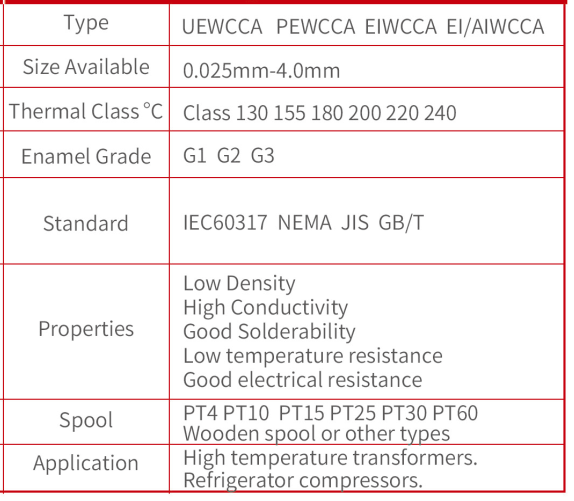

Enameled Copper Clad Aluminum Round Wire

 Thermal Class: 130 155 180 200 220 240

Magnet Wire Advantage

1.Short delivery and timely delivery
2.considerate after-sales service
3.Professional manufacture for Copper Clad Aluminum Enameled Wire with more than 12 years experience
4.Full set of testing equipment to ensure products' performance
5.Strict quality control process
6.We are factory and our price is competitive
7.We also manufacture cca wire, so we have good cost advantage.
