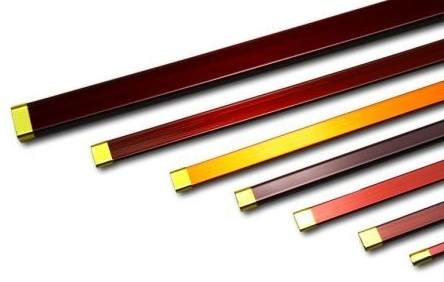

Enamelled Copper Flat Wire

Description

Enameled rectangular Wire is coated by the various enamel films on the bare conductor in accordance with customer’s specification. This important wire is used for winding coils for DC motors, transformers, generators, welding machines and other applications.

Size range

a: 0.50mm-8.50mm

b: 2.00mm-40.00mm

Standards

IEC60317，   MW36，   GB/T

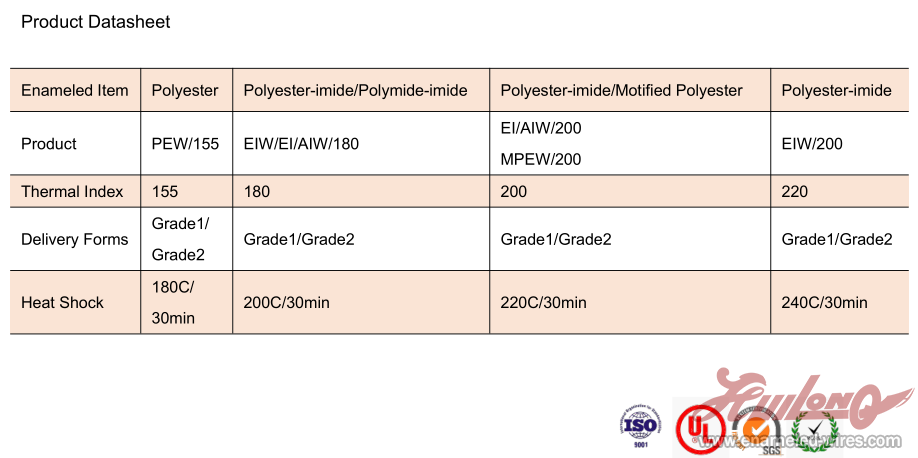

Specifications of rectangular enamelled copper wire

• Flat wire thickness           : 0.50-8.50mm

• Flat wire width                  : 2.00-40.00mm

• Width/thickness ratio       : 1.4<W/T<8.0

• Conductor                        : enamelled copper wire

• Standard                          : IEC60317-28 MW36 GB/ T7095




• Thermal Index                 : 180°C, 200°C, 220°C

Advantages

1. Excellent bending property

2. High flexibility of the enamel

3. Good resistance to abrasion

4. High mechanical property

5. Higher thermal property

6. Good resistance to refrigerant and freon

7. Suitable for windings that are subjected to constantly high temperature and mechanical stress

8. Good chemical resistance

9. Outstanding mechanical and chemical property

Application

1. 120 degree flat enameled wire for oil-immersed transformer

2. 130,155,180 degree flat enameled wire are widely used in all kinds of magnet coil

3. 200 degree flat enameled wire works constantly in high temperature

It is mainly used for Transformer, Electric Motor, Generator and other electric devices.
