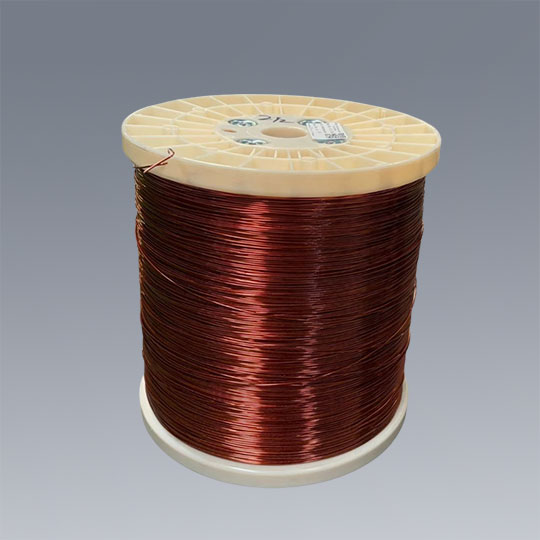

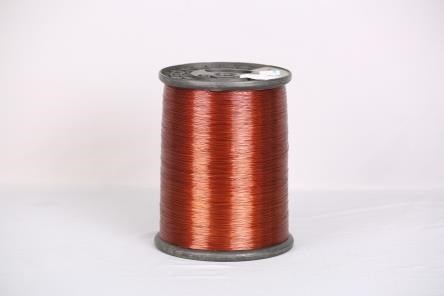

200°C C Aluminum Enameled Round Wire

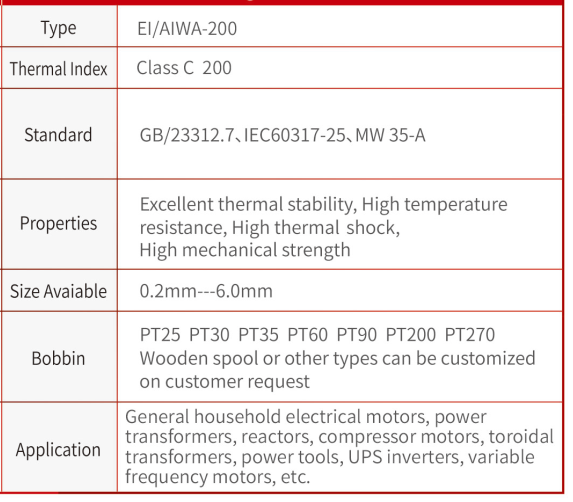

Model: EI/AIWA/200

Description:

Thermal Class(°C)：Class C 200

Standard：GB/T23312.7、IEC60317-25、MW35-A

Properties：Excellent thermal stability、High temperature resistance、High thermal shock、High mechanical strength

Size Available：0.10mm---6.0mm

Bobbin：PT25 PT30 PT35 PT60 PT90 PT200 PT270，Wooden spool or other types can be customized on customer request

Application：General household appliances motors、power transformers、compressor motors、electric reactors、ring transformers、electric tools、UPS inverters、etc

Technical details

Available:

Providing thermal resistance up to 200°C, YD 200 also possess the features of good resistance against dipping varnishes, casting resins, solvents and thermal shock performances.

Fields of Use:

lRefractory transformer

lHermetic machine

lMotors of the power tool

lVoltage regulators

lVarious types of magnet-coils

lGeneral purpose electric motors

Advantage:

l All products parameters are recorded with quality control system at every stage of production process and following by barcode system until delivery.

l Our products receive approval with production parameters of quality control system according to standards of GB/T23312.7 2009, IEC60317-25, NEMA 35.

Thermal Class (°C)	Class C, 200 °C
Insulation \| Base Coat	Polyester-imide
Insulation \| Top Coat	Polyamide Imide
Insulation \| Bong Coat	-
Production Range (MM) (MM)	0.20 - 4.00 mm
Certification I.E.C	IEC 60317 - 25
UL File No.
Class Temperature (°C)	200 °C
Heat Shock (°C)	≥ 220 °C
Cut Through Temperature (°C)	≥ 320 °C
Solderability (°C)	Non solderability
Bonding Temperature (°C)	Not Applicable
Re-softening Temperature (°C)	Not Applicable
Normal Solvent Resistance	≥H
Resistance to humidity	Excellent
Resistance to Impregnants	Yes
Resistance to Refrigerants	Yes
Distinct Features	Better weight ratio compared to copper, price advantage, ease of winding due to soft and flexible structure.
