Enameled Copper Round Wire

180℃ H Enameled Copper Round Wire

Enameled Copper Round Wire,HuiLong 180℃ H Enameled Copper Round Wire,180℃ H Enameled Round Copper Wire

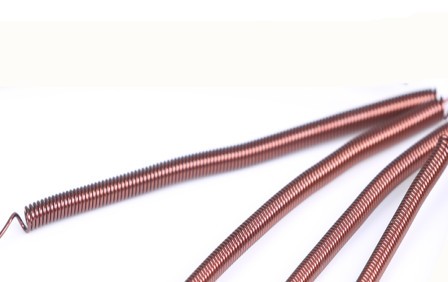

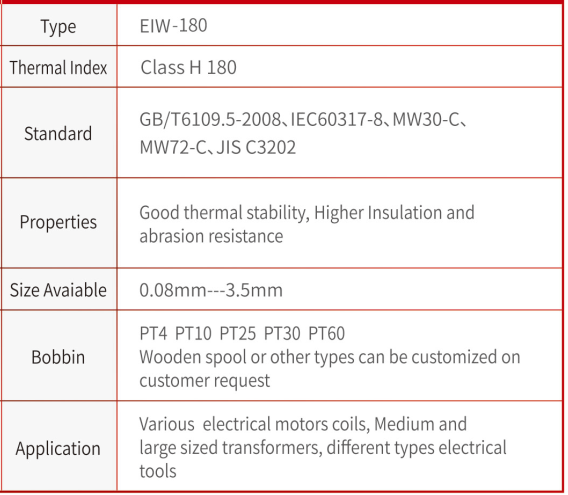

Type/Model: QZY-180; EIW-180
Thermal Class(℃): Class H 180
Standard: GB/T6109.5-2008、IEC60317-8、MW30-C、MW72-C、JIS C3202
Size Available: 0.08mm--3.5mm
Properties: Good thermal stability、Higher Insulation and abrasion resistance
Application: Various electrical motors coils、Medium and large sized transformers、different types electrical tools
Description More Info
Description

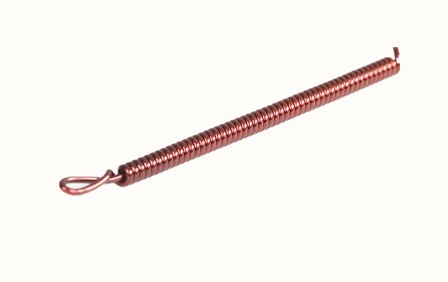

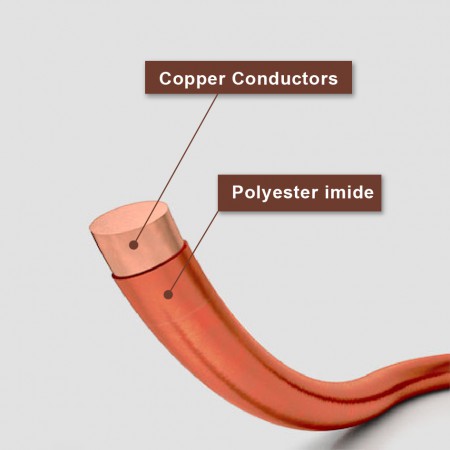

 insulation Coatings: Polyester imide 180

Dimensions: 0.08mm to 3.50 mm 180°C H  Enameled Copper Round Wire

Applications:

Various electrical motors coils、

Medium and large sized transformers、

different types electrical tools



Mechanical Properties (For 0.3mm)

Elongation:      >30%

Springiness:       <45

Adherence – Flexibility:    Excellent

Resistance to Abrasion: >17.75N



Electrical Properties

Breakdown Voltage:     7KV

Thermal Properties


THERMAL CLASS (°C)       Class HB, 180 °C

INSULATION | BASE COAT     Polyester imide

INSULATION | TOP COAT     -

INSULATION | BOND COAT       -

PRODUCTION RANGE (MM) (MM)  0.08 - 3.00 mm

CERTIFICATION I.E.C       IEC 60317 - 8

UL FILE NO

CLASS TEMPERATURE (°C)      180 °C

HEAT SHOCK (°C)       ≥ 200 °C

CUT THROUGH TEMPERATURE (°C)          ≥ 300 °C

SOLDERABILITY (°C)      Non solderability

BONDING TEMPERATURE (°C)    Not Applicable

RE-SOFTENING TEMPERATURE (°C)   Not Applicable

NORMAL SOLVENT RESISTANCE    4H - 5H

DIPPING VARNISH RESISTANCE     Good

REFRIGERANT RESISTANCE      Good

TRANSFORMER OIL RESISTANCE  Good

DISTINCT FEATURES: Generator, Electromechanical

FIELDS OF USE :Excellent windability, high colling speed and high

mechanical resistance, Good resistance FREON

High mechanical resistance, High resistance to  solvents, High thermal resistance (180°C)

Keywords: Magnet wire, enameled wire, coil, copper wire, aluminum wire, Flat wire, ECCA,Copper clad Aluminum


More Info

Description:


Polyesterimide Enameled Copper Wire, Thermal Class H180

180°C H  Enameled Copper Round Wire


Thermal Class(°C) :Class H 180

Standard:GB/T6109.5-2008、IEC60317-8、MW30-C、MW72-C、JIS C3202

Properties:Good thermal stability、Higher Insulation and abrasion resistance

Size Available:0.08mm--3.5mm

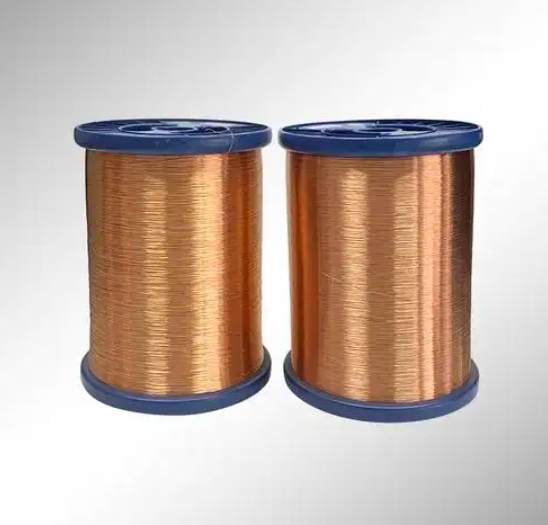

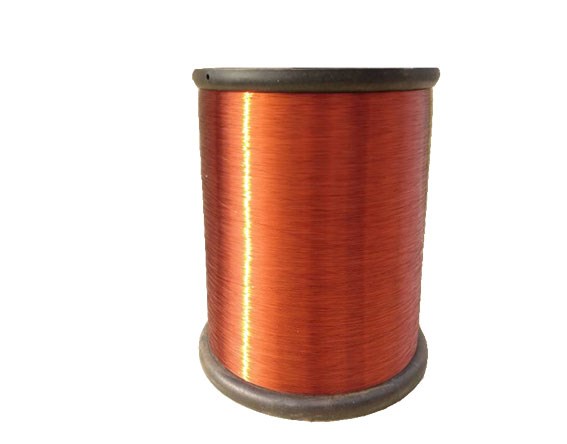

Bobbin:PT4 PT10 PT25 PT30 PT60,Wooden spool or other types can be customized on customer request

Application:Various electrical motors coils、Medium and large sized transformers、different types electrical tools
