200℃ C Enameled Copper Round Wire

Standards

       IEC 60317-0-1:2014

Insulation Coatings  : Polyester imide 200

Dimensions               : 0.08mm to 3.50 mm

Applications

      Suitable for automated soldering equipment used for

     production/manufacturing of small motors, transformers,

     relays and magnet coils.

Mechanical Properties (For 0.3mm)

Elongation                         : >30%

Springiness                      :<45

Adherence – Flexibility:    Excellent

Resistance to Abrasion :    >17.75N

Electrical Properties

Breakdown Voltage:          7kV

Thermal Properties

Temperature Index:           200

Cut through:                     ≥ 225 ℃

Heat Shock:                       ≥320 ℃

Chemical Properties

Solvent Test:                 4H

Resistance to Refrigerants : -

 Bare Conductor – Copper Characteristics (Annealed Condition)

Electrical Resistivity @ 20°C 0.017241Ωmm²/m Temperature Coefficient @ 20°C : 0.00694°C Specific Weight : 8.89 Gr/cm³ Ultimate Tensile Strength : 22-30 kg/mm²

Primary Insulation Colour : Transparent / Natural

Keywords: Magnet wire, enameled wire, coil, copper wire, aluminum wire, Flat wire, ECCA,Copper clad Aluminum

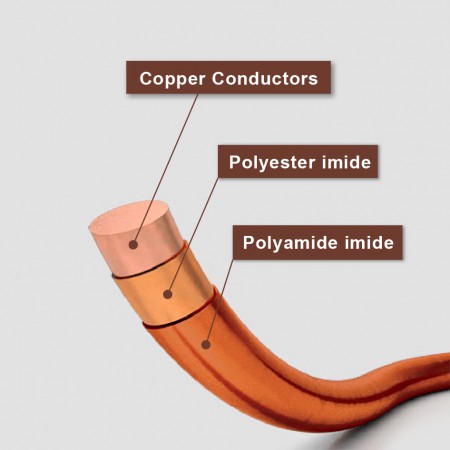

Polyester (imide) Overcoat With Polyamideimide Enameled Copper Wire, Thermal Class C200

Model: EI/AIW

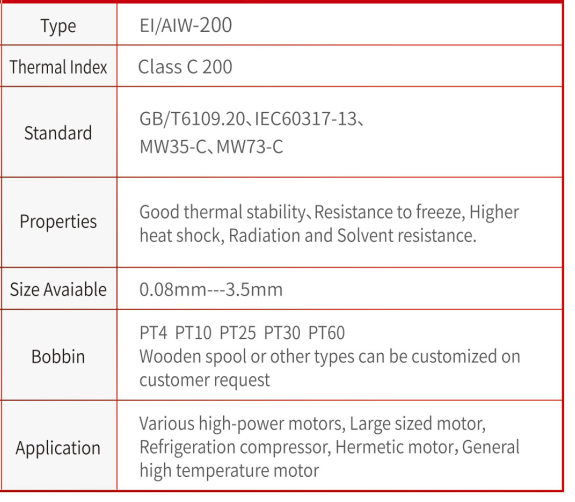

Description:

Thermal Class(°C)：Class C 200

Standard：GB/T6109.20、IEC60317-13、MW35-C、MW73-C

Properties：Good thermal stability、Resistance to freeze、Super heavy weight、Radiation and Solvent resistance.

Size Available：0.08mm---3.5mm

Bobbin：PT4 PT10 PT25 PT30 PT60，Wooden spool or other types can be customized on customer request

Application：Various high-power motors、Large sized motor、Refrigeration compressor、Hermetic motor、General high temperature motor
