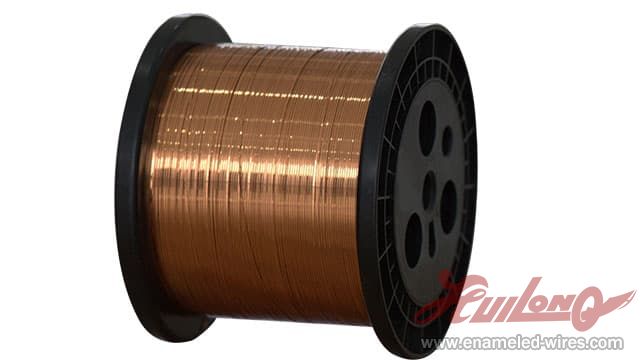

Ultra Fine Self-Bonding Rectangular Enameled Copper Wire is suitable to lifting electromagnets, reactors and other low-voltages and high current electromagnetic windings. We have a big variety of self bonding wire types available. Different base coats and self bonding overcoats are described in different standards, such as NEMA MW 1000 or JIS C 3202, IEC 60317, which will use different test methods in sometimes . The different base coats have the different typical technical values ,such as Polyurethane, Polyester, Polyesterimide etc. Besides, it also has different bond coats, such as Polyvinylbutyral, Polyamide etc. According to different products' uses, we present different product recommendations, including diameter, temperature and insulation materials.
Electronic transformers Micro motors Printed coils High-end audio coils Other specific purposes
Specifications
| Enameled Type | polyurethane |
| Type | UEW/SB-130/155/180 |
| Temp Class | 130, 155, 180 |
| Conductor | Copper |
| feature | Solderable and bonding |
| Size(mm) | a：0.025-0.4 b：0.25-3.0 |
| Standard | IEC60317-0-2 IEC60317-29 |
