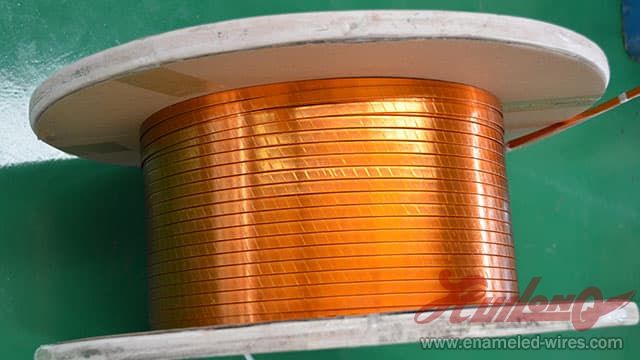

Shandong Huilong Enamel Wire——Amulti-layer polyimide & fluoropolymer dispersion coated film
Shandong Huilong Enamel Wire adopts high-quality F46 Polyesterimide layer and finishs through high heat sintering. Shandong Huilong Enamel Wire’s temperature can reach 290℃ and its voltage class can be 7200v. Special processing technology makes the product have high mechanical properties, stronger overload capacity, heat-resistant properties and suitable for large and medium-sized motor coils and winding of electrical appliances Shandong Huilong Enamel Wire is ideal for demanding magnet wire applications and for difficult-to-wind motors. Shandong Huilong Enamel Wire also is a multi-layer polyimide & fluoropolymer dispersion-coated film. The fluoro polymer coating functions as a heat-fusible layer for bonding to magnet wire conductors. It has superior scrape abrasion resistance and exhibits lower frictional properties than wire insulated with other commonly used polyimide materials.
Shandong Huilong Enamel Wire Is Applications:
Magnet wire Traction motors used in rail, auto, and mining Industrial motor insulation Wind, hydro generators
Specifications
| Bare Diameter | Overall Diameter | Resistance | ||||||
| SIZE | OD” min | OD min | OD” max | OD max | OD min | OD max | Rmax Ω/m | Rmin Ω/m |
| 6.00 | 0.1602 | 4.070 | 0.1638 | 4.160 | 4.310 | 4.390 | 0.001322 | 0.001271 |
| 6.50 | 0.1516 | 3.850 | 0.1547 | 3.930 | 4.080 | 4.170 | 0.001478 | 0.001422 |
| 7.00 | 0.1429 | 3.630 | 0.1457 | 3.701 | 3.850 | 3.950 | 0.001666 | 0.001603 |
| 7.50 | 0.1348 | 3.424 | 0.1375 | 3.493 | 3.650 | 3.750 | 0.001864 | 0.001792 |
| 8.00 | 0.1272 | 3.231 | 0.1298 | 3.297 | 3.450 | 3.550 | 0.002103 | 0.002019 |
| 8.25 | 0.1237 | 3.141 | 0.1262 | 3.204 | 3.354 | 3.461 | 0.002225 | 0.002138 |
| 8.50 | 0.1201 | 3.051 | 0.1225 | 3.112 | 3.270 | 3.370 | 0.002355 | 0.002260 |
| 9.00 | 0.1133 | 2.878 | 0.1155 | 2.934 | 3.090 | 3.200 | 0.002650 | 0.002550 |
| 9.50 | 0.1069 | 2.715 | 0.1091 | 2.771 | 2.940 | 3.050 | 0.002955 | 0.002843 |
| 10.00 | 0.1009 | 2.563 | 0.1029 | 2.614 | 2.770 | 2.880 | 0.003342 | 0.003213 |
| 10.50 | 0.0952 | 2.418 | 0.0971 | 2.466 | 2.630 | 2.750 | 0.003731 | 0.003586 |
| 11.00 | 0.0898 | 2.281 | 0.0918 | 2.332 | 2.480 | 2.600 | 0.004219 | 0.004055 |
| 11.50 | 0.0848 | 2.154 | 0.0865 | 2.197 | 2.360 | 2.480 | 0.004720 | 0.004526 |
| 12.00 | 0.0800 | 2.032 | 0.0816 | 2.073 | 2.230 | 2.350 | 0.005316 | 0.005110 |
| 12.50 | 0.0755 | 1.918 | 0.0770 | 1.956 | 2.106 | 2.238 | 0.005969 | 0.005739 |
| 13.00 | 0.0712 | 1.808 | 0.0727 | 1.847 | 2.000 | 2.130 | 0.006693 | 0.006437 |
| 13.50 | 0.0672 | 1.707 | 0.0686 | 1.742 | 1.892 | 2.027 | 0.007513 | 0.007229 |
| 14.00 | 0.0634 | 1.610 | 0.0647 | 1.643 | 1.800 | 1.940 | 0.008385 | 0.008078 |
| 14.50 | 0.0599 | 1.521 | 0.0611 | 1.552 | 1.702 | 1.841 | 0.009394 | 0.009058 |
