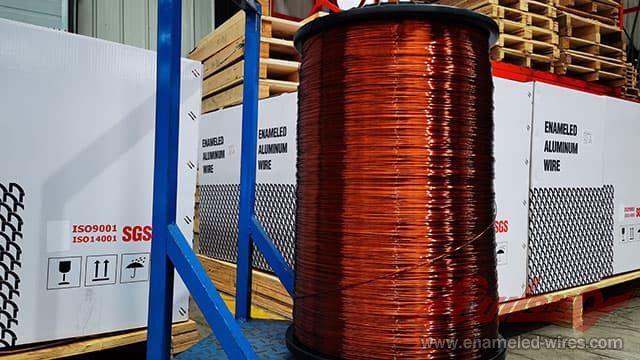

Enameled Round Aluminum Wire Features of Enameled Round Aluminum Wire
Low density allows coil weight reduction
Rapid heat dissipation
High cut through
Excellent heat shock
Perfect breakdown voltage
High heat resistance
Good solvent resistance
Enameled Round Aluminum Wire Application
Transformers/ Heat-resistant motors/ UPS Power source/ Generators/ Refruigerating system;Other electrical devices in the coil windings
Enameled Round Aluminum Wire Specifications
| Enameled Type | Polyester | Modified Polyester | Polyester-imide | Polyester-imide/Polyamide-imide | Polyester-imide |
| Products type | PEW/130 | MPEW/155 | EIW/180 |
PEW/EIW/AIW/200
| EIW/220 |
| Temp Class | 130 | 155 | 180 | 200 | 220 |
| Insulation Grade | Grade1/Grade2/ Grade3 | Grade1/Grade2/ Grade3 | Grade1/Grade2/ Grade3 | Grade1/Grade2/ Grade3 | Grade1/Grade2/ Grade3 |
| Standard | IEC,NEMA,JIS,GB or according to customers’ requirements | ||||

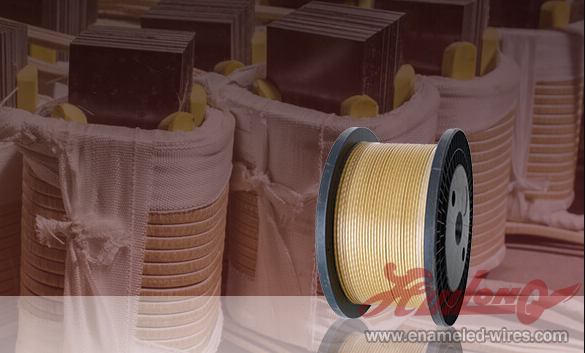

Nomex Paper Covered Wire
