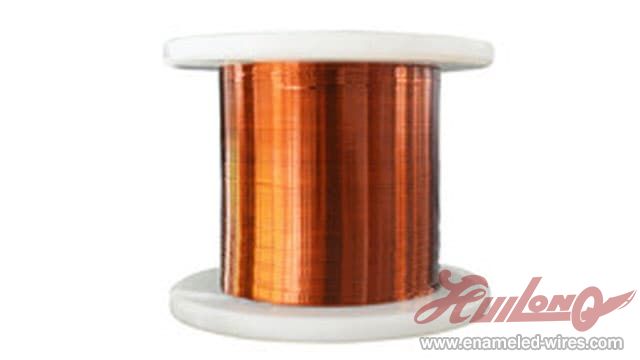

High cubage ratio creates possibility of smaller and lighter electronic coils or electric motors. High conductor density in unit area, small size coil can reach high electricity efficiency. Outstanding better radiation performance and electromagnetic effects compared with round copper wires.
Thickness:The least conductor thickness reach 0.025mm(AWG22); Based on unique innovation on process technics and technology, the ultra-fine rectangular enameled copper wire obtains unparalleled mechanical and electrical performance, the thermal class reach 220℃.
Specifications
| Enameled Type | Polyamide-imide | polyester-imide /Polyamide-imide |
| Type | EI/AIW/200 | EIW(EI/AIW)220 |
| Temp Class | 200 | 220 |
| Conductor | Copper | Copper |

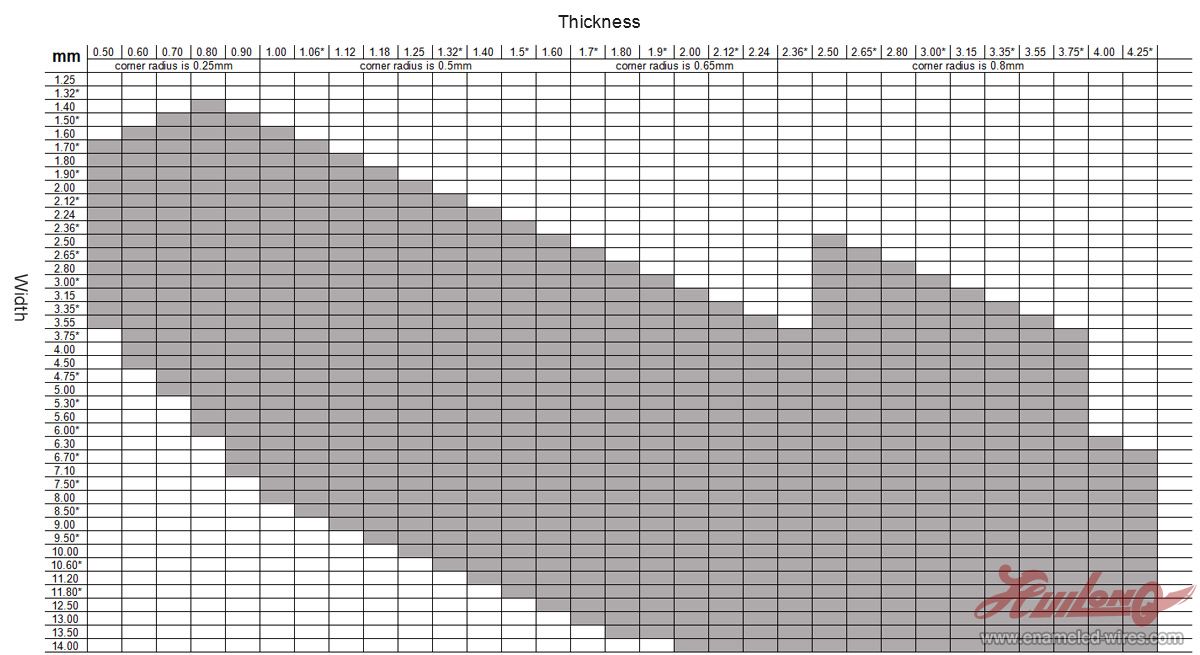

| Size(mm) | a：0.025-0.4 b：0.25-3.0 | a：0.025-0.4 b：0.25-3.0 |
| Standard | IEC60317-0-2 IEC60317-29 | IEC60317-0-2 IEC60317-29 |
